SWIFT™
SWIFT™ - BUILT FOR EASY PORTABILITY AND FAST DEPLOYMENT
SWIFT™
We have designed SWIFT™ to serve as the optimal observation platform for operators who require easy mobility and rapid deployment.
The SWIFT™ drone is tailored to align our deep understanding of drone technology with the precise needs of our partners.
SWIFT™ is born from a close collaboration with operators and is designed to fulfill rigorous demands. SWIFT™ exhibits exceptional manoeuvrability, its agile nature allows for smooth movement even within confined spaces, rendering it suitable for even harsh conditions.
The portability of SWIFT™ represents a significant advantage. SWIFT™ is compact enough to be stowed in a backpack or carrying case, facilitating effortless transportation between locations.
SWIFT™ features quickly detachable arms which enhances portability, making the drone more compact for storage and transport
it also enables easy maintenance and repair. If an arm is damaged, it can be replaced independently, reducing downtime and repair costs.
Key Features
AES-128 Encrypted,
Built In EU
.webp)
Optional Companion Computer
Fast Deployment

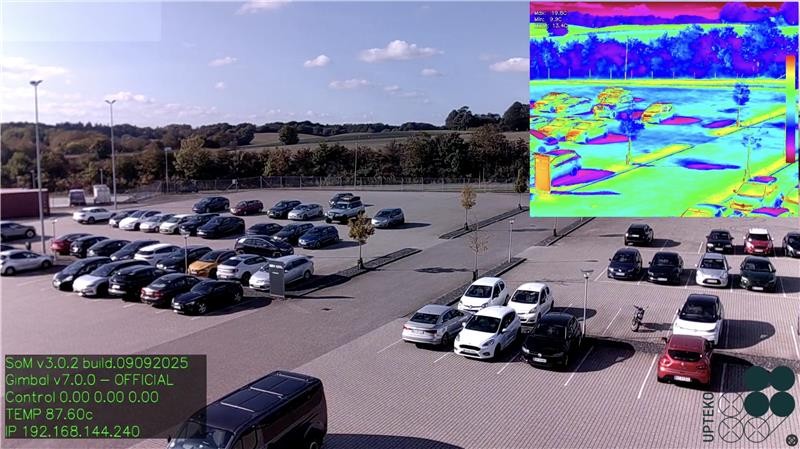

Advanced Thermal and Visual Detection with Powerful Zoom Capability
Detachable arms
Multiple controller options
.webp)
RTK or PPK Integration
Dual sensor with 48 MP EO sensor & 640×512 Thermal sensor
QGroundControl (QGC)
Rugged Design with IP54 Rating
Specifications
The SWIFT™ drone system specifications - contact us for more
MTOW
3.5 Kg Ready To Fly (RTF)
4.0 Kg Maximum Take Off Weight (MTOW)
Detachable Arms
Reducing downtime & repair costs
Endurance
Up to 35 Min Flight Time
Power System
6S Li-ion
IP Rating
IP54
Wind Resistance
16 m/s
Operating Temperature
From -15°C to +50°C
.webp)

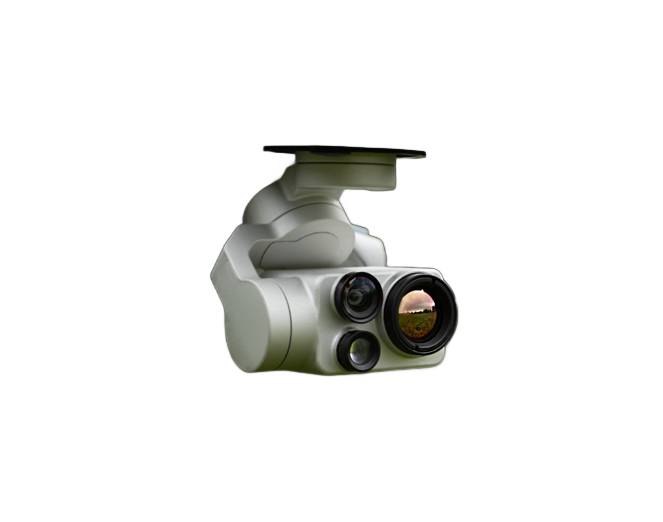

Infisight Specifications
The Infisight dual sensor camera specifications - contact us for more
Sensor capabilities
Object Tracking & AI Detection on both Vision and Thermal sensors
EO sensor
EO Camera, 48 MP, 1/2" CMOS, 3.4mm lens
77° HFOW, 10x digital Zoom
Thermal sensor
Thermal Camera 640x512 VOx Microbolometer
≤ 40 mK NETD, 1-8x digital zoom
Frame rate 30 Hz Format JPEG, MP4 (H.265)
Frame Rate
30 Hz
Format
JPEG, MP4 (H.265)
Operating Temperature
From -10°C to +50°C
Flight performance
The graph shows flight time compared to weight
Test Conditions
Max wind speed of 5 m/s
Temperature +2-5°C
Robust - A drone for the industry
Purpose driven ISR drone specially designed for operators in critical situations
.webp)
Chasis Loading Hinge Strutural
Prop Adapter Blade Imbalance Handle Strutural Landing Gear Load
Structural Test
Water Ingress
Dust Ingress
Cold and Hot
Enviromental Test
Skynode
IMU
LTE Modem
Short Circuit
Overvoltage
Over Current
RF
Electrical Test
Carbon Yield
Aluminium Fatigue
Plastic High/Low Temp
Plastic Deformation
Material Test
Software Validation
500-hour Flight
Rate Mode
High-Speed
Full Power
Dingbot
Agressive Maneuvers
Flight Test
RTX
FRX Pro
Herelink
Futaba
Crossfire
PMDDL
Control Test
FLIR Test
Worksell Wiris
A7R4
Nextvision Colibri
Lidar
Package Delivery
Payload Test
Software Validation
App
Ground Station
Ecosystem
Software Test
%20(1).webp)
%20(1).webp)
Customisable radio link
Skydroid H16 PRO
The H16 series from Skydroid uses the newest processor, equipped with an Android embedded system and advanced SDR technology. Additionally, it features a super protocol stack to make the image clearer, reduce latency, extend transmission distance, and enhance anti-interference capabilities.
Key Features:
- 30 km transmission distance
- 1080P Display
- All-in-one telemetry
- Expansibility
Skydroid H30
The Skydroid H30 is a portable and cost-effective ground control station for drones, integrating video link, data link, remote control, and Android system. Equipped with a powerful Qualcomm Snapdragon 660 8-core processor and an Android 9 (64-bit) embedded system.
Key Features:
- 50 km transmission distance
- 1080P Display
- All-in-one telemetry
- Qualcomm 660 processor
UXV SRoC
The SRoC (Soldier Robotic Controller): A Ruggedized GCS with Advanced Features, built on the robust Panasonic FZ-S1, offers a standardized, non-customizable solution designed for modern GCS users in defense robotics.
SRoC is designed for the innovative SRM radio platform with the Nett Warrior connector integrated into the controller handle, it provides exceptional communication flexibility even in harsh environments. In addition to the internal battery, the SRoC conveniently accommodates two Swappable Battery Modules (SBMs) on its back, allowing for easy power expansion.
Key Features:
- 1x Nett Warrior Connector
- Wi-fi
- Made for defence robotics
- 1x SRM dock
FR-SKY X20 PRO HD
The X20 PRO optimizes and integrates the functional inputs of the TANDEM series models. Building on the foundation of X20/X20S, it adds 2 extra trims, allowing for more precise tunings during the operations. The levers on both sides of the transmitter’s slider support customizable positioning of the center toward, catering to different users’ habits and preferences.
Key Features:
- Built-in TD-ISRM Pro Dual-Band Internal RF Module
- Text-to-speech function
- 800*480P Display
- 8GB internal storage
Tomahawk Grip S20
Grip S20 is a rugged, metal-clad, controller case for the Samsung Galaxy S20 Tactical Edition smartphone. Grip S20 includes all the military-hardened physical buttons and joysticks you would expect plus the addition of an integrated USB hub that eliminates the need for special cables that charge and pass data in Nett Warrior loadout configurations. Grip S20 is offered with a hinged MOLLE chest mount and Nett Warrior-compliant cabling.
Key Features:
Onboard computer
Raspberry Pi 5
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a ×2 to ×3 increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor.
Key Features:
NVIDIA Jetson Orin
Jetson offers scalable software, modern AI stack, flexible microservices and APIs, production-ready ROS packages and application-specific AI workflow at your fingertips. NVIDIA® Jetson Orin™ modules give you up to 275 trillion operations per second (TOPS) and 8X the performance of the last generation for multiple concurrent AI inference pipelines, plus high-speed interface support for multiple sensors.
Key Features:
Security
AES128 Encryption
AES-128, part of the Advanced Encryption Standard, stands out as an optimal choice for drone communication. Its 128-bit key size ensures robust security against various attacks, striking a valance between strength and computational efficiency. Its low-latency characteristics make it ideal for real-time control and navigation.
Built in Denmark
Built in Denmark with every critical part sourced from within the EU. A 100% EU made can be made upon customer request.
BLUE sUAS
BLUE sUAS (Small Unmanned Aircraft Systems) represents a set of standards and criteria designed to enhance the security and reliability of drones. Developed to meet rigorous performance requirements BLUE sUAS ensures the unmanned aerial vehicles adhere to strict cybersecurity measures and are trusted for critical applications. These standardised drones offer a level of confidence in their operational capabilities, making them suitable for sensitive missions, such as military, law enforcement, and other government applications, where security and dependability are paramount.
Features
UM982 GNSS
As a full-constellation GNSS module, UM982 tracks GPS, BDS, GLONASS, Galileo and QZSS for stable satellite signals. Embedded anti-jamming technology and enhanced RTK engine solution significantly improve RTK accuracy and reliability in complex environments such as urban blocks and tree shade.
LW20/C LiDAR
The LW20/C microLiDAR® is the industry de facto standard for 100m range capability, reliability, and ease of integration. A robust IP67 rating ensures it is dust and water-resistant.
Payloads
G-Hadron Flir 640r
Made in the USA, and ITAR-free, the Hadron™ 640R pairs a performance-leading 640x512 resolution radiometric Boson® thermal camera with a 64MP visible camera in a single easy-to-integrate module.
The Boson longwave infrared (LWIR) thermal camera provides the ability to see through total darkness, smoke, most fog, glare as well as take the temperature of every pixel in the scene. The 64MP visible camera imagery enables AI and machine learning for intelligent sensing applications.
Key Features:
- Visible Camera: 64 MP
- EO Sensor: 9248 x 6944 pixels
- Temperature accuracy: ±5°C less, over 0°C to 100°C range
- Thermal: Boson 640x512 pixels
- EO Camera Video: Full resolution @ 60 Hz
Topotek KHY10G619
The KHY10G619 from Topotek offers 90x hybrid zoom, 10x optical zoom and 9x digital zoom. Utilizing a 2MP EO camera and a 13/19 mm, 640x512 pixel IR camera, weighing 490 grams in total.
Key Features:
- Weight: 490g
- 90x Mixed Zoom
- 640x512 IR Camera
- 2MP EO Camera
Skydroid C10
The Skydroid C10 camera combines HD resolution, three-axis stabilization, and an extremely lightweight design into a single payload. Its compact form seamlessly balances high-quality video recording with extended flight time, delivering exceptional stabilized imagery throughout.
Key Features:
- Weight: 61g
- 1080p Resolution
- Three-Axis Stabilization
- Hidden Wiring
Skydroid C12
The C12 mini gimbal camera integrates a high-definition visible light camera with thermal imaging sensors, offering both clear visuals and heat detection. It features a 2K distortion-free visible light camera capable of 2K photography, recording, and digital zoom, bringing distant scenery into sharp, detailed focus.
Key Features:
- 2K Resolution High-Definition
- Thermal Imaging
- Image Splicing
- Weight: 117g
Topotek DIY10S4KG613
The DIY10S4KG613 is an integrated dual sensor camera system with visible and thermal light sensors, as well as AI powered target recognition.
Key Features:
- Zoom: 70x Mixed
- Thermal: 640x512 Pixels
- Target detection: AI Target Detection
- Color modes: 10 Pseudo-color Modes
Topotek KHP640M5
The KHP640M5 from Topotek is a complete thermal camera in an extremely light weight package.
Key Features:
- Thermal: 640x512 Pixels
- Digital Zoom: 9x
- Control Algorithm: High Precision and High Coordination Control Algorithm
- IP Control: Single IP for Picture and Data
G-Hadron Flir 640r
Topotek KHY10G619
Skydroid C10
Skydroid C12
Topotek DIY10S4KG613
Topotek KHP640M5
ISDT K2 Air charger
H-RTK M8P Base w/ Tripod
SW-propellers
Telemetry EU
Telemetry US
SWIFT™ Hard case
SWIFT™ Backpack
Purelux Rotatable 10
Accessories
ISDT K2 Air charger
The all-new Air version of the popular K2 adds wireless connectivity, allowing you to control the charger through your phone, as well as support for ISDT's BattAIR technology.
The K2 offers 200W of charge power when running on AC power, or up to 500W per channel with a DC power source. Charge at up to 20A per channel or put the two channels in parallel to increase the output.
H-RTK M8P Base w/ Tripod
H-RTK M8P Base is the latest differential high-precision GNSS RTK positioning system from Holybro. It uses a UBLOX M8P module along with a high gain antenna with a 5m cable that can mount onto most survey tripod 5/8″ thread.
Tripod included.
SW-propellers
T-motor MF1302 foldable offers a special winglet design that is easy to fold and spread, while offering precise positioning, making it ideal for flight.
Telemetry EU
Our Europe specific radio modem is the RFD868X-EU. It offers out of the box RF communications, up to 500 Kbps data rate, diverse antenna support and outdoor line of sight range of up to 40 KM.
This telemetry solutions offers compliance with EU specific regulatory requirements
Telemetry US
Our America specific radio modem is the RFD900X-US. It offers out of the box RF communications, up to 500 Kbps data rate, diverse antenna support and outdoor line of sight range of up to 40 KM.
This telemetry solutions offers compliance with US specific regulatory requirements.
SWIFT™ Hard case
The SWIFT™ Hard case is the best solution for easy transportability of the SWIFT™ drone, offering space for propellers, 5 batteries and the ISDT K2 air charger.
SWIFT™ Backpack
The SWIFT™ backpack offers the ultimate solution for transportability of the SWIFT™ drone. Offering space for controller, charger and extra batteries.
Purelux Rotatable 10
A sleek, compact UAV light featuring a 360° rotating mounting base and a broad beam for optimal illumination. With a color temperature of 5000 Kelvin, it delivers 850 lumens of brightness and has a range of 28 meters at 1 lux.
